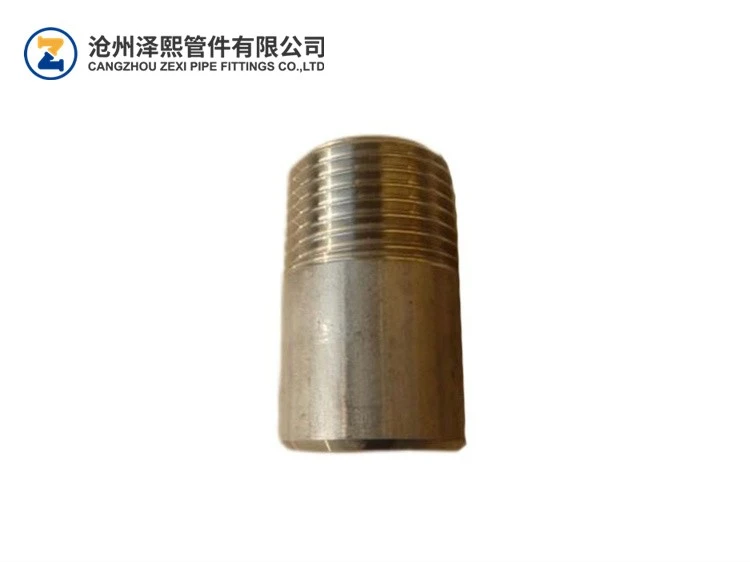

Product Description
A threaded pipe fitting is a type of pipe connector used to join and connect pipes in a plumbing system by means of threads. The ends of pipes or fittings are machined with tools called taps and dies to make screw threads.
Product Features & Applications
The Threaded Pipe Fitting is a type of forged pipe fitting designed to be screwed onto the ends of pipes or other fittings, creating a secure and leak-proof connection in high-pressure piping systems.
Our threaded pipe fittings are available in various types, such as threaded 90 degree elbows, couplings, nipples, unions, and branch outlets. These fittings are made from stainless steel, carbon steel, alloy steel, and super duplex stainless steel. They are available in different pressure ratings, including 2000lbs, 3000lbs, and 6000lbs. The common threaded types include NPT, BSPT, and BSPP.
Classification
Metric Threaded Pipe Fittings
Thread Standard
M series (such as M10×1.5), with strong versatility, mostly used in mechanical structures or low-pressure pipelines.
Sealing Logic
Relying on the interference fit between thread teeth, raw tape/sealant is required to assist in sealing.
Pipe threaded pipe fittings (focusing on pipeline sealing)
Cylindrical pipe thread (such as G1/2)
No taper, relying on filler (raw tape, sealant) to assist in sealing, mostly used in low-pressure water / gas systems.
Tapered pipe thread (such as R external thread, Rc internal thread)
Taper 1:16, after tightening, the cone surface fits and self-seals, suitable for medium and high pressure (such as gas and steam pipelines).
American tapered pipe thread (NPT)
Taper 1:16, American standard, commonly used in oil and gas / chemical fields.
British Whitworth Threaded Pipe Fittings (BSW/BSF)
Traditional British standard, used in a small number of mechanical fields.
Our Factory
Zexi Company has been rooted in Cangzhou for 30 years and is a pipe fittings solution provider integrating R&D and manufacturing. It has the ability to customize steel pipes according to samples. Its products have passed ISO228-1, BS EN 10241 and other certifications. The ISO9001 management system guarantees stable quality and accurate delivery. Its business covers North America, South America and other regions.
