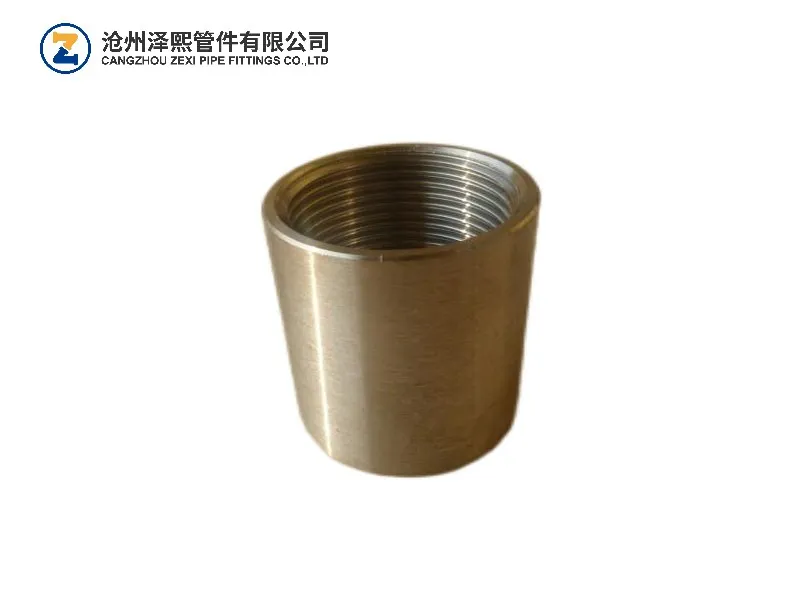

A Coupling fitting is a small but useful part in pipe installation. It connects two pipe ends, extends a pipe run, or helps repair a damaged section after the old pipe is cut out. In threaded systems, the worker can install it with seal tape or sealing paste and a pipe wrench. In socket weld systems, the Coupling fitting is welded in place when the line needs a stronger permanent joint.
This product can be made as carbon steel, galvanized steel, or stainless steel. The outside shape looks simple, but the inner bore, thread length, opening edge, and wall thickness all affect how it fits with the pipe. This product with rough thread may damage the pipe end or need too much force during installation, so thread cleaning and sampling checks are useful before goods are boxed.
Product Parameters
|
Parameter |
Value |
|
Material |
Carbon steel, galvanized steel, stainless steel |
|
Size |
1/8 inch to 6 inch commonly used |
|
Connection Type |
Threaded or socket weld |
|
Thread Standard |
NPT / BSP / BSPT by order |
|
Type |
Full, half, reducing type by request |
|
Surface |
Black, plain, zinc plated, hot-dip galvanized |
|
Common Matching Parts |
Pipe nipples, valves, elbows, tees, unions |
|

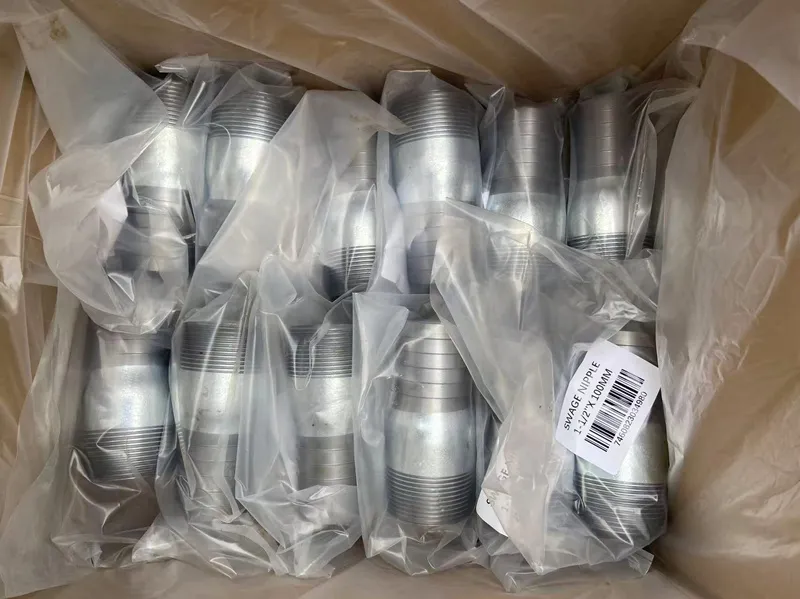

Packing Method |
Carton, bag, pallet, or separated size packing |
Product Advantages
For Coupling fitting, compact size helps save space in crowded pipe work.
Common thread options make it easier to match local pipe parts.
Simple shape is easy to count, label, and pack for mixed orders.
Our Services
Size list checking before production.
Thread and surface sample confirmation when needed.
Packing photo and carton mark check before shipment.
